I've finally decided I'm making a tiki mug for my home tiki bar, Kilauea Cove! Much thanks to Wendy Cevola and many other people on these forums over the years for writing up the trials and triumphs of making them, and giving me the knowledge I need to make my own!

So far I've got the master sculpt done, and I'm about to mold it (today!). I've got glaze test tiles waiting to dry so they can be fired, and I'm champing at the bit to get production rolling.

Here is the master sculpt just before a little final clean-up:

And here are artist’s (me) concept drawings of the two glazes, "Lava" and "Wood":


@bobtiki on TweetFace, et al.
Kilauea Cove thread

[ Edited by: bobtiki 2017-07-15 12:33 ]

B

Reserved for future updates.

B

Reserved for future updates.

It is so much fun when another mug maker shows up here to share. Those look great.

I have never gotten the black crackle glaze to work. What is your secret. Mine just blends and spreads flat. Wendy


[ Edited by: danlovestikis 2017-07-03 20:02 ]

Sweet

B

On 2017-07-03 20:02, danlovestikis wrote:
It is so much fun when another mug maker shows up here to share. Those look great.

I have never gotten the black crackle glaze to work. What is your secret. Mine just blends and spreads flat. Wendy

Thank you for stopping by, Wendy! Thanks for the kind words. Your huge master thread has been a great source of knowledge and inspiration for me.

As for the crackle glaze, I'll let you know once I know! I'm waiting for glaze tests right now, so hopefully one will work out.

Didn't get the mug molded today, but did do an extensive clean-up pass, catching a few tiny undercuts. Starving now, so the mold will have to wait until morning.

[ Edited by: bobtiki 2017-07-03 20:28 ]

B

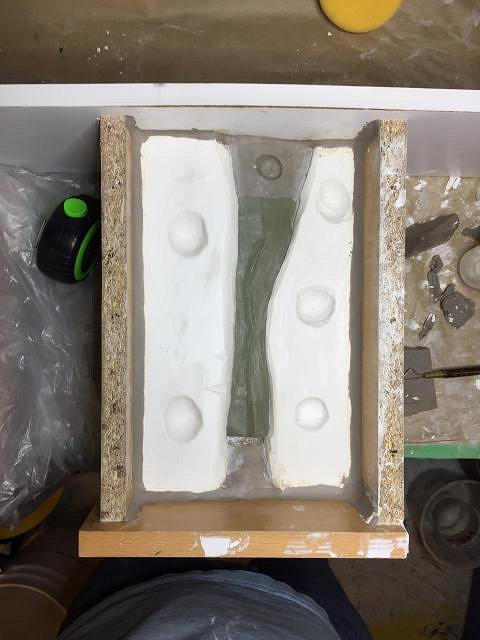

This week I've been pouring the plaster mold for the mug. First I put a wall of water clay around the mug to wall off the first piece of the mold. The wall is a bit of an irregular shape because there were some potential undercuts in Pele’s hair I was trying to avoid:

The very first piece was made with some older pottery plaster that had been in the workshop for a while, and it must have absorbed some moisture, because the plaster reaction kicked really fast, and it started getting to the thickness of sour cream halfway through my pour. It seemed like I had covered the surface of the sculpture before that happened, though, so I decided to move forward. I could always re-pour that piece once the others were done.

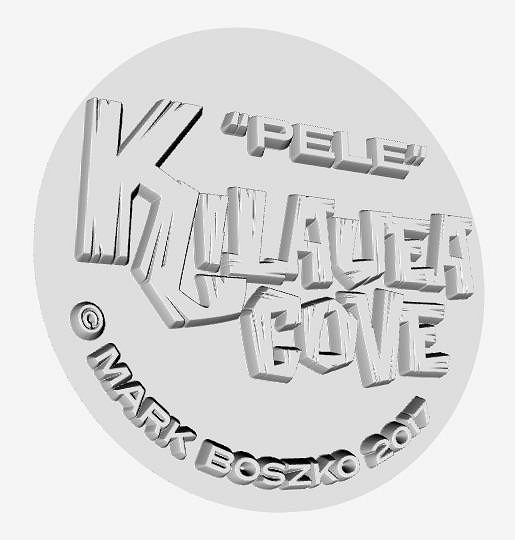

After pouring the four walls, I was ready for the base. I hadn't sculpted any detail in the base of the original sculpt, planning to address it when it was time to pour the last piece of plaster. I designed a 3D model of the Kilauea Cove logo and some other text.

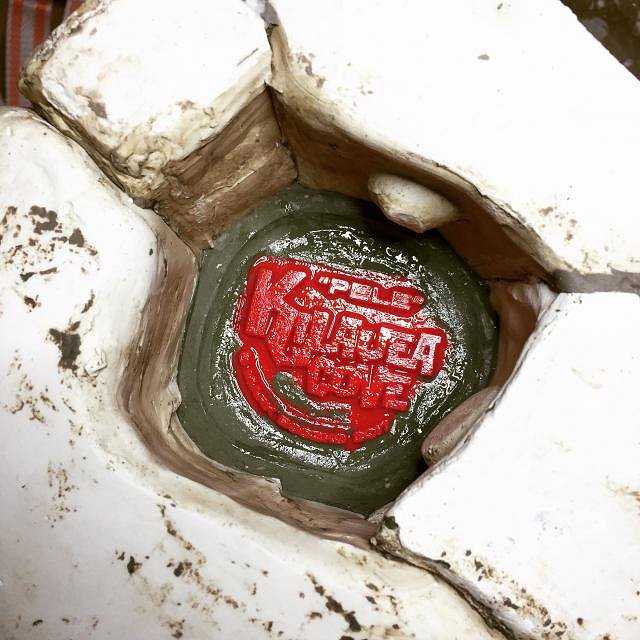

I then used a 3D printer to print a dimensional version of that model, and embedded that in the base of the mug. I have an FDM printer, which stands for Fused Deposition Modeling — basically it melts thin filaments of plastic and draws a layer at a time, building up the layers vertically. When you 3D-print this way, you end up with small ridges on the side of the model that are a little rough (at least on my printer), and would have made it hard to mold cleanly, so I used a resin called XTC-3D to help smooth out the edges and blend it into the base of the mug — which is why it looks so shiny in this photo:

After that, I popped off the front piece of the mold, covering the Pele figure, to see how the sour cream plaster had fared. It was surprisingly not bad! But I decided to re-pour it anyway, to avoid having to clean up a few small bubbles, and make the mold surface cleaner. The original sculpt wasn't damaged from the mold, and required minimal clean-up to prepare for the re-mold.

One of the side pieces also poured a little thick and there was a little water clay stuck in the edge that I didn't get out, so there was a thick gap between mold pieces right in Pele's hair. I re-poured that side piece too, and the match is much better now. I might not have bothered if I wasn't going to be making 75+ of these. Just trying to avoid more clean-up on the casts.

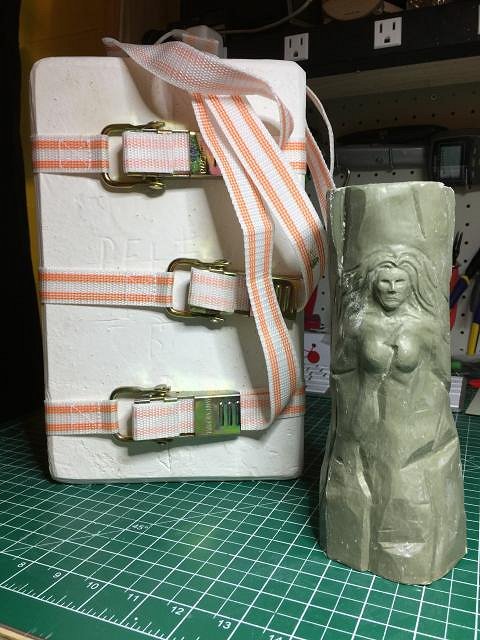

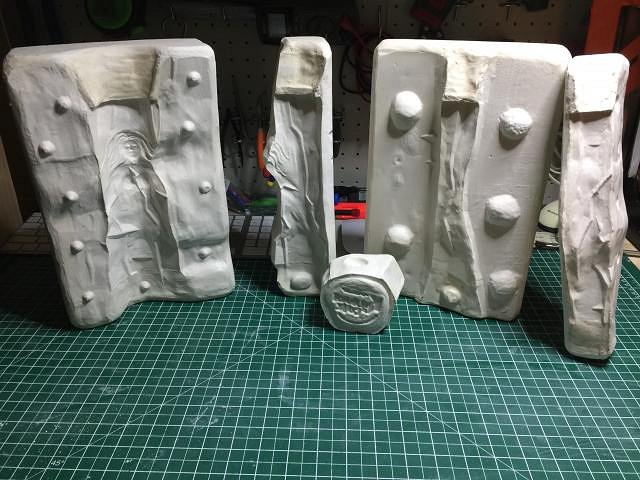

After a little clean up, here's the entire finished mold! Now to just let it dry for about a week, and then I can start casting mugs out of it. :D


While that's drying, I need to work on some test tiles this week so that I can fire a few things next weekend.

Oh, did I mention I bought a kiln?! :o Found a real beaut on Craigslist for only $150, and all it needed was one replacement coil, so at least now I can do some of this at my house, instead of carting them off to be fired elsewhere. So excited. :D

Feeling pretty good about my progress, though. Experienced folks: See anything I could have done better?


@bobtiki on TweetFace, et al.
Kilauea Cove
In progress: Pele Tiki Mug

[ Edited by: bobtiki 2017-07-15 12:43 ]
